2005+ Toyota Tacoma Spindle Gusset Kit

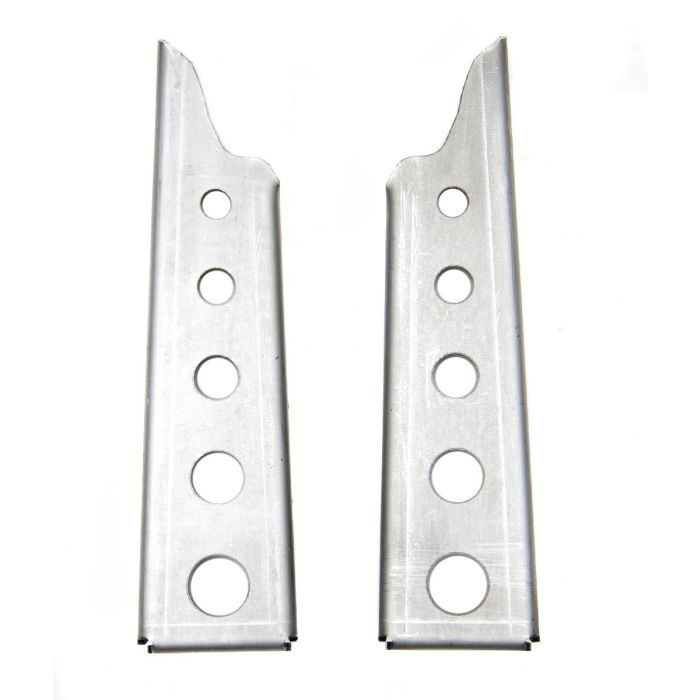

Toyota Spindle Gusset Kit (set of RH and LH)
Don’t get stuck out on the trail with a damaged spindle! All-Pro's Toyota Spindle Gussets will reinforce the upright section of the weak factory spindle and help prevent bending or breaking out on the trail. If you wheel your FJ Cruiser, 05+ Tacoma, or 03+ 4Runner hard, you need these gussets. Though other manufacturers sell similar gussets, the exclusive All-Pro design is the only one that allows you to retain your factory sway bar for safe handling on the road.
NOTES:
- Welding is required for installation.
- Compatible with wheels with up to 4.75″ backspacing only. (Wheel spacers are required for wheels with more than 4.75" backspacing.)
Toyota Vehicles Factory Wheel Specs (1995-2014)
2005-2014 Toyota Tacoma 6-Lug Model – 2wd & 4wd
Factory 17×7.50 Wheel Offset = +30.00 mm – Back Space = 5.50″ Inches
Factory TRD Sport Alloy 17×7.50 Wheel Offset = +30 mm – Back Space = 5.50″ Inches
Factory TRD Off-Road 16×7.00 Wheel Offset = +32 mm – Back Space = 5.25″ Inches
1995.5-2004 Toyota Tacoma 6-Lug Model – 2wd & 4wd
Factory 16×8.0 Wheel Offset = +1.00 mm – Back Space = 4.54″ Inches
1999-2006 Toyota Tundra – 2wd & 4wd
Factory 16×7.0 Wheel Offset = +15.00 mm – Back Space = 4.50″ Inches
Factory 17×7.5 Wheel Offset = +18.00 mm – Back Space = 5.00″ Inches
Lug Pattern is 6 x 139mm
Hub Bore Diameter = 106mm
2007+ Toyota Tundra – 2wd & 4wd
Factory 17×8.0 Wheel Offset = +50 mm – Back Space = 6.50″ Inches
Factory 18×8.0 Wheel Offset = +60 mm – Back Space = 6.85″ Inches
Factory 20×8.0 Wheel Offset = +60 mm – Back Space = 6.85″ Inches
Lug Pattern is 5 x 150mm
Hub Bore Diameter = 110mm
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Weld-on install
- Sold as a pair
- See "Item Description" tab for wheel specs
- 2005+ Toyota Tacoma
- 2003+ Toyota 4Runner
- 2007-2014 Toyota FJ Cruiser
