KC HiLites 6" Daylighter 100W Halogen 2-Light System
KC HiLites 6" Daylighter 100W Halogen 2-Light System
KC's Classic 6" Daylighter Halogen feature powerful 100W Halogen Bulbs in spread pattern, shock-mounted steel black housing, parabolic reflectors, and glass lenses. System includes complete relay wiring harness, switch kit, and light covers.
KC’s time-tested Daylighter shock mount system is resilient and allows users to accurately aim their lights ensuring beam stability and consistency.
6" Daylighter Halogens deliver up to 1,717 lux at 10 meters of light output with a beam distance of 829 meters in a spread beam pattern. Tempered glass lens and precision optical reflectors with bright H3 Halogen bulbs combine to improve range and clarity.
WARNING - Cancer and Reproductive Harm - www.P65Warnings.ca.gov

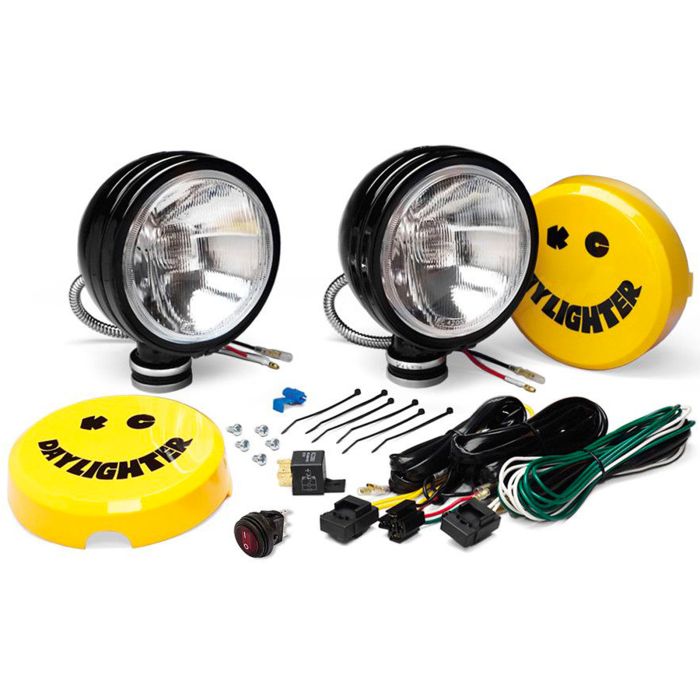

In The Box:
(2) 100W 6" Daylighter Halogen lights
(1) Deluxe Plug-N-Play Wiring Harness with 30 amp LED Switch
(2) Protective Light Covers
- Amp Draw: 16.67 A
- Voltage: 9V-32V
- Mounting Position: Auxiliary
- Light Color: White (4000 K Color Temperature)
- Lens Color: Clear
- Lens Material: Tempered Glass Lens
- Candela: 171,675 cd
- Lumens: 2,452 lm
- Lux: 1,717 lx
- Total Wattage: 200W (100W per light)
- Beam Pattern: Spread
- Beam Distance: 2720 feet (829 meters)
- IP Rating: IP68
Non-Vehicle Specific
Download installation instructions here.
Installation InstructionsSee manufacturer for details.
