Fabricated Axle Builder Kits

Rating:
% of 100
$1,293.23
100+ In Stock
SKU
Fabricated Axle Builder Kits

Fabricated Axle Housing Builder Kits

Known for their strength, light weight, and simplicity, Toyota axles are the perfect fit for many custom off-road projects.  Factory Toyota axle housings are available in a narrow range of widths which may not fit your crawler well.  Trail-Gear Fabricated Axle Housings allow you to use Toyota axles in nearly any width from the narrowest of moon buggies to full-size trucks.

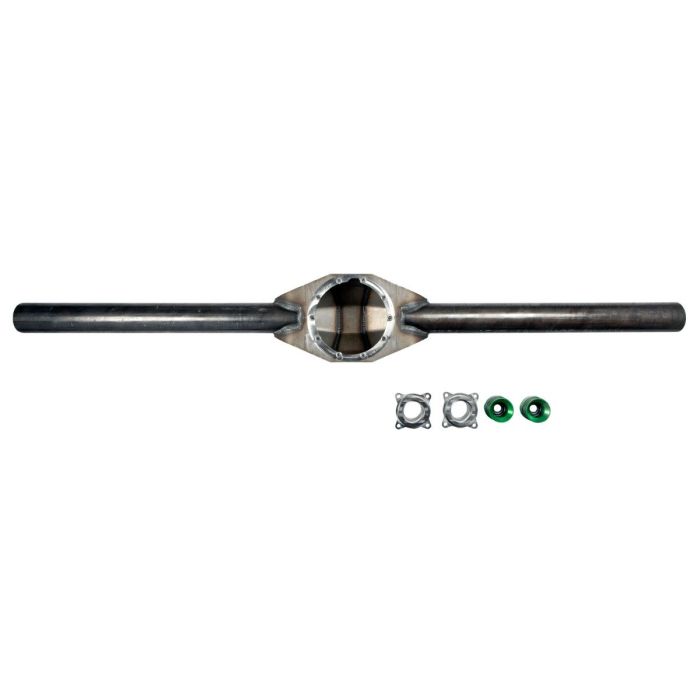

Trail-Gear’s Fabricated Axle Housings Builder Kits are available for Toyota 8”, 8" E-locker, or 8.4" differentials and feature all of the same specifications as our Rock Assault 9 axles.  Fabricated Axle Housing Builder Kits include a 75-inch wide Trail-Gear axle housing and two housing ends.  You can cut the axle length to size and weld your axle tube flanges where you need them.

We started with a 1/4" thick formed shell for the center section made out of ASTM A36 steel. This is a high-strength, low alloy, structural steel plate with a minimum yield strength of 36,000 psi! All of this is attached to an equally strong 1/2" thick faceplate for anchoring the 3.5” OD DOM axle tubes. The axle tubes are secured by the industry's first 3-point attachment system, giving the tubes superior support and engagement into the center section. We also face the center section to ensure your differential mounts flush against the axle housing to prevent leaks.

We offer two different axle tube wall thickness options.  The 1/4-inch wall tube version saves weight while the 3/8-inch wall tube version provides even greater durability.

We also include seal housing kits for both sides.

**MADE IN THE USA**

We recommend the addition of our Axle Housing Inspection Hole Kit to allow for easy fluid level and ring gear visibility. Just select "With Inspection Hole Kit Installed" in the drop down menu above. The kit is also available in a DIY installation version (requiring drilling through the differential housing and welding on a threaded bung).

Part Number Description:

SKUDescription
306063-KIT 8" Housing 3.5" OD - 1/4" Wall Tube 79-95 Flanges
306065-KIT 8" Housing 3.5" OD - 1/4" Wall Tube 05+ Flanges
306066-KIT 8" E-Locker Housing 3.5" OD - 1/4" Wall Tube 79-95 Flanges
306068-KIT 8" E-Locker Housing 3.5" OD - 1/4" Wall Tube 05+ Flanges
306069-KIT 8.4" Housing 3.5" OD - 1/4" Wall Tube 79-95 Flanges
306071-KIT 8.4" Housing 3.5" OD - 1/4" Wall Tube 05+ Flanges
306072-KIT 8" Housing 3.5" OD - 3/8" Wall Tube 79-95 Flanges
306074-KIT 8" Housing 3.5" OD - 3/8" Wall Tube 05+ Flanges
306075-KIT 8" E-Locker Housing 3.5" OD - 3/8" Wall Tube 79-95 Flanges
306077-KIT 8" E-Locker Housing 3.5" OD - 3/8" Wall Tube 05+ Flanges
306078-KIT 8.4" Housing 3.5" OD - 3/8" Wall Tube 79-95 Flanges
306080-KIT 8.4" Housing 3.5" OD - 3/8" Wall Tube 05+ Flanges
TGI-308937 8" Fabricated Axle Builder Kit 1/4" Wall 79-95 Flanges w/ Inspection Hole
TGI-308938 8" Fabricated Axle Builder Kit 1/4" Wall 05+ Flanges w/ Inspection Hole
TGI-308939 8" Fabricated Axle Builder Kit 1/4" Wall 79-95 Flanges E-Locker w/ Inspection Hole
TGI-308940 8" Fabricated Axle Builder Kit 1/4" Wall 05+ Flanges E-Locker w/ Inspection Hole
TGI-308941 8.4" Fabricated Axle Builder Kit 1/4" Wall 79-95 Flanges w/ Inspection Hole
TGI-308942 8.4" Fabricated Axle Builder Kit  1/4" Wall 05+ Flanges w/ Inspection Hole
TGI-308943 8" Fabricated Axle Builder Kit 3/8" Wall 79-95 Flanges w/ Inspection Hole
TGI-308944 8" Fabricated Axle Builder Kit 3/8" Wall 05+ Flanges w/ Inspection Hole
TGI-308945 8" Fabricated Axle Builder Kit 3/8" Wall 79-95 Flanges E-Locker w/ Inspection Hole
TGI-308946 8" Fabricated Axle Builder Kit 3/8" Wall 05+ Flanges E-Locker w/ Inspection Hole
TGI-308947 8.4" Fabricated Axle Builder Kit 3/8" Wall 79-95 Flanges w/ Inspection Hole
TGI-308948 8.4" Fabricated Axle Builder Kit 3/8" Wall 05+ Flanges w/ Inspection Hole

⚠ WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov

  • Customer choice of Fabricated 8”, 8” Elocker, or 8.4” Axle housing
  • Customer choice of ¼” or 3/8” wall tubing
  • 3.5” OD axle tubing
  • Comes with seal housings.
  • ½” faceplate
  • ¼” formed center section
  • Flanges are CNC machined from Billet steel
  • Flanges work with all factory axle and brake components
  • 75" Wide



NOTE: Recommend welding seal housing set screw hole closed if using factory seals in axle flanges.
