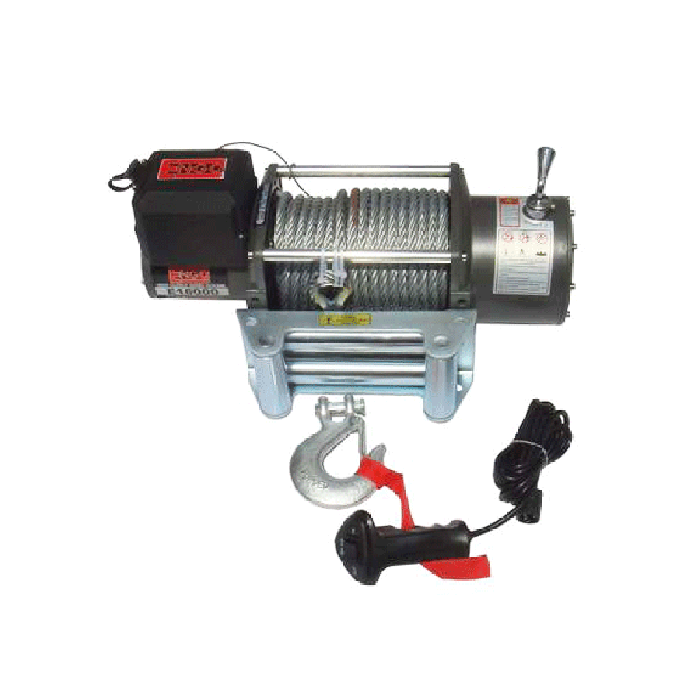

Engo E16000 16,000 lbs with Steel Cable (77-16000)
$575.62
SKU
ENG-77-16000
| Rated Line Pull | 16,000 lb. (7259kg) |
| Motor | 3.2 HP/ 2.4 KW, Series Wound 10000-11000 RPM |
| Gearing | 3-Stage Planetary |
| Gear Ratio | 386:1 |
| Brake | Automatic Load Holding |
| Clutch | Sliding Ring Gear(Free Spooling) |
| Fairlead | 4-Way Heavy Duty Roller |
| Cable or Rope | Wire 12mm x 26m |
| Net Weight | 133 lb. (61kg) |
| Dimensions | Length x Width x Height, 530mm x 216mm x 220mm |
| Drum Dimensions | Diameter 88mm; Length 268mm |
| Mounting Bolt Pattern | 10" x 4.5" (254mm x 114.3mm) |
Universal
If you have any questions on the use or installation of this product please contact our customer support at (559)-549-6737
See manufacturer for details.
