95-97 Tacoma Rear Suspension Kit
Now offering a complete rear kit with everything you need to install our springs on your 95-97 Tacoma with the exception of the shocks. When installing aftermarket rear lift springs on the 95-97 Tacoma’s you need to relocate your front spring mounts and rear shackle mounts to accommodate the longer length of the lift spring. This is only required on 95-97 trucks and this kit supplies you with what you need. When swapping over to our rear shackle hangers the need for shackle spacers is eliminated. Now you will run a straight shackle and 120mm bolts. Removal of the factory spring and shackle mounts is required and the welding of our mounts to your frame is necessary. When installing our rear flip kit the installation of our rear lower shock mounts need to be welded to the rear axle housing as well.
Our ’98-’04 Tacoma rear leaf springs are factory length. These springs have a special torque leaf to reduce axle wrap. Springs come with new poly bushings and sleeves.
Mounting our springs on 95-97 Tacoma’s will require new front spring hangers 2″ forward (hole to hole) from stock, and the rear shackle hangers moved back 1″.
All-Pro’s Standard Duty leaf springs (4500T-AP) are NOT designed for heavy weight carrying capability. They are designed for ride quality and flex. For those carrying heavier loads such as rigs fully loaded for long-term expeditions, we recommend All-Pro “Expedition” Heavy Duty rear springs.
All-Pro’s new Expedition leafs are specifically designed to combine off-road performance with heavy duty weight carrying capacity. The popular expedition style trend in off-road vehicles is resulting in trucks that are carrying heavier loads than normally seen off-road. Specialized long-distance excursion gear such as roof-top tents, recovery and repair gear, camping equipment and extra water and fluids can add significantly to the cargo weight of expedition vehicles, exceeding the intended operating parameters of typical performance leaf springs.
All-Pro’s Expedition Leaf Springs (4500T-AP-EX) feature a 20% higher spring rate than our standard leaf springs. They are otherwise identical in dimension and quality, providing the same eye-to-eye measurements and wheel travel.
On unloaded Tacomas, they will result in a 1″ taller stance than the stated lift height of 3″. The stated lift height is maintained with loads of 400-500 lbs of cargo.
* A higher number of thinner leaves provides a smoother, progressive spring rate compared to fewer, thicker leaves
* Double “military” wrap provides extra strength for the main leaf
* “Torque Leaf”, an extra half-leaf at the top of the spring pack, increases anti-wrap properties without hindering travel or ride quality
* Diamond-cut leaf ends to eliminate stress points which may weaken leafs and lead to premature failure
* Teflon anti-friction pads between leafs provide smoother flex, lessen spring wear and reduce noise
* Leafs are shot-peened after forming to relieve stress
* Every completed spring pack is pre-cycled to their travel extremity for quality control and to reduce the likelihood of initial sag
- Using a lifting block or shackle flip with our springs will void the All-Pro warranty
- Leaf springs are shipped without packaging. It is normal for springs to be scratched by freight carriers during the shipping and handling process and by customers during installation. We recommend that leaf springs be touched up with spray paint after they are installed to cover any bare metal exposed during shipping and installation.
WARNING - Cancer and Reproductive Harm - www.P65Warnings.ca.gov

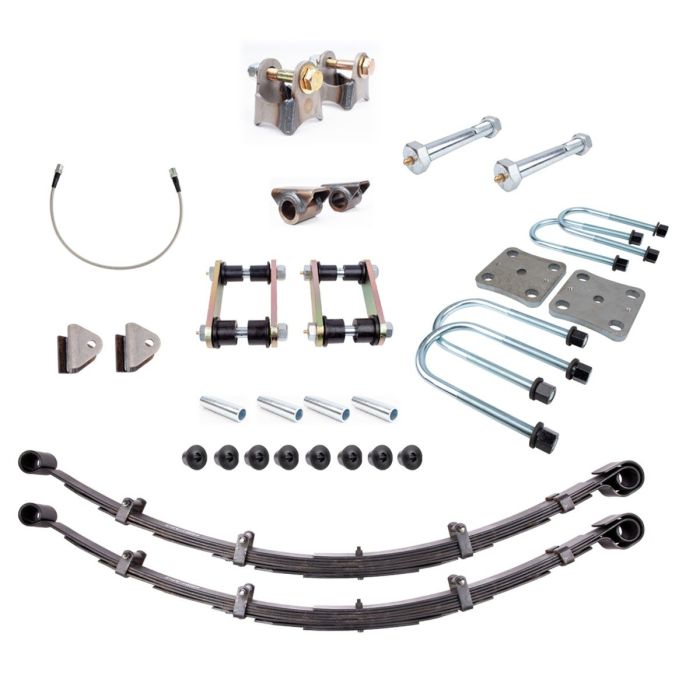

- Rear Spring Hangers w/ 120mm Greasable Bolts
- Rear Shackle Hangers w/ Bushings
- Rear Leaf Springs (Std or Expo)
- Rear 5″ Straight Shackles w/ 120mm Greasable Bolts
- Rear Flip Kit
- Extended Rear Brake Line w/ clip
- Rear Lower Shock Mounts w/ Hardware
1995 Toyota Tacoma
1996 Toyota Tacoma
1997 Toyota Tacoma
