2016+ Toyota Tacoma Long Travel Kit
2016+ Toyota Tacoma Long Travel Kit
Following the success of our original Tacoma Long Travel Kit All-Pro Off-Road is proud to reveal our High Clearance Long Travel Suspension kit for the 3rd Generation Tacoma!

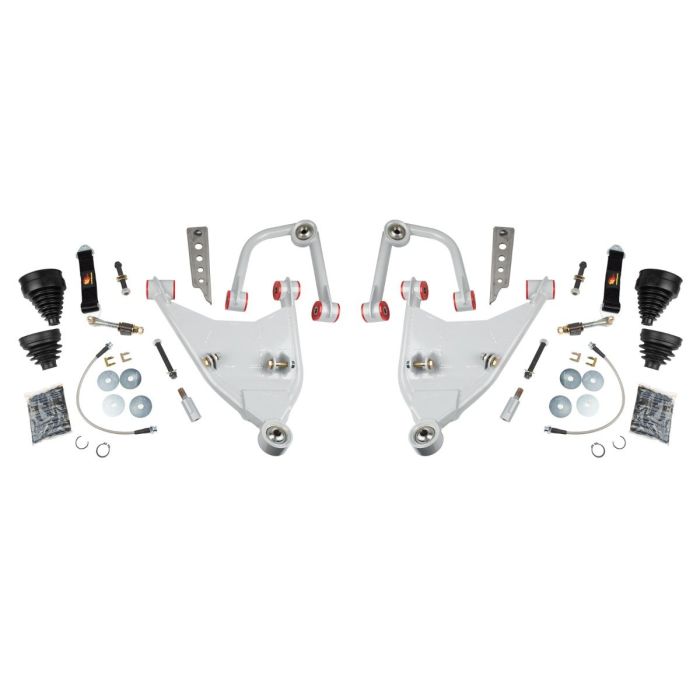

Engineered to get 12” of wheel travel while extending the track width by 2” per side, this new Long Travel Kit has been completely redesigned to give you an additional 2 inches of ground clearance. Our long travel kit features 4130 Chromoly tubular upper and lower control arms. The Lower Control Arms (LCAs) are boxed for maximum strength and plated for extreme durability. An integrated skid plate gives All-Pro Control Arms unbeatable skid protection on the trail. Our LCAs also feature a 1” uniball that replaces the weak factory lower ball joint.
The 2” wider Upper Control Arms (UCAs) feature an industry leading 1.25” uniball for maximum articulation and vertical travel. The uniball is adapted to fit to the factory spindle using heat-treated 17-4 Stainless Steel misalignment spacers. All four control arms, upper and lower, pivot on polyurethane bushings and have built in zerk fittings for easy maintenance.
From rocks to sand and everything in between, this long travel kit goes anywhere without sacrificing comfort, quality, and performance. Our lift kits are born and developed on some of the hardest trails around, including the Hammers, Rubicon, and Moab, the All-Pro LT kit is built tough!
Additional Parts Recommended for Installation:
Chromoly Axle Shafts (not included)
Our extended heat-treated 4340 chromoly axle shafts, made by Currie Enterprises, are required for 4×4 applications. They are inserted into the factory inner and outer CVs to retain 4WD. These are not included in the kit and must be purchased separately. Please contact our sales staff if you have questions before ordering.
Timbren Bumpstops (not included)
All-Pro has teamed up with Timbren SES to offer an upgraded bumpstop for use with our LT kit, or even stock. They are made of a softer compound than their usual options which are specifically designed for increased weight carrying capacity. Timbren Bumpstops provide a smoother stop than the factory bumpstop without needlessly limiting travel. Recommended for 33”+ tires. These are not included in the kit and must be purchased separately.
Long Travel Shocks (not included)
Long Travel Shocks are required for our Long Travel Kit. For best results, we recommend Fox 2.5 Factory Series Remote Reservoir Long Travel Coilover Shocks or the Fox 2.5 Factory Series Remote Reservoir Long Travel Coilover Shocks with DSC Adjustment.
Tire and Wheel Recommendations:
Max tire size without fiberglass fenders: 315/75/16 or 315/70/R17 (35″)
With Fiberglass (37″)
Max wheel backspacing: 4.75”
Alignment specs: Toe = factory; Camber = factory; Caster = 2.5-3 degrees
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Upper & Lower Arms constructed from 4130 Chromoly Steel DOM Tubing
- Grade 8 hardware included as needed, uses factory pivot bolts.
- Weight: 95 lbs (Upper and Lower Arms, Axles, Steering, Gussets)
- Max Wheel Backspace – 4.75″
- 2016 Toyota Tacoma 4wd
- 2017 Toyota Tacoma 4wd
- 2018 Toyota Tacoma 4wd
- 2019 Toyota Tacoma 4wd
- 2020 Toyota Tacoma 4wd
Download Installation Instructions for Tacoma Long Travel Kit Installation HereInstallation Instructions
All products carry our 12 Month Limited Warranty. All warranties are limited to the original purchaser and are not transferable to subsequent owners of the product. The warranty period begins on the purchase date. Trail-Gear warrants that it will repair or replace, free of charge, any eligible product which, under normal conditions of use and service, proves to be defective in materials or workmanship. This warranty does not cover any labor costs incurred in diagnosis of defects, removal or reinstallation of a product, nor does it cover any other consequential expenses.
Trail-Gear Inc. warranty does not cover, and Trail-Gear Inc. shall not be liable for, any undertaking, representation, or agreements made by dealers or other third parties selling Trail-Gear products, except where such agreements are within the provisions of this Warranty.
Specifically excluded from this warranty are failures caused by lack of maintenance, misuse, negligence, modification, abuse, improper application, crash damage, installation or operation, or failures caused by unauthorized service or use of unauthorized parts.
Additionally excluded from this warranty are parts which are subject to normal wear and tear, such as bushings, fluids, hoses, gaskets, belts, etc. Products not manufactured by Trail-Gear Inc. are excluded from any warranty and shall be handled with the original manufacturer.
All parts used in a competitive racing environment are excluded from this warranty. If, after inspection, a part returned, under any warranty, is deemed to be ineligible for warranty repair or replacement, the part may be repaired or replaced for a discounted cost. Return shipping charges will apply. Any part for which a warranty replacement is sought must be returned to Trail-Gear Inc. before any replacement items can be shipped. All replacement parts shipped before the suspect part has been received and evaluated by Trail-Gear, MUST BE PAID IN FULL. In such a case, after the suspect part has been received and approved for a warranty replacement, the purchase price for the replacement will be refunded.
- Please contact Trail-Gear Inc. at 559-252-4950 or email firstname.lastname@example.org prior to returning any product under warranty to verify that warranty is still in effect.
- Products must be shipped back to Trail-Gear Inc. at the expense of the customer.
- ATTN: WARRANTY
- 5356 E. Pine Avenue
- Fresno, CA 93727.
Ship all products to:
- Please place a clearly marked copy of the original invoice inside the package.
- Please include a short note stating the problem you are experiencing.
If any of the above mentioned policy is not met, the package will be refused or warranty claim denied. By completing the steps above, this will ensure faster processing of your claim so that Trail-Gear can get your product back to you as quickly as possible. All warranties are generally processed within 2-3 business days of Trail-Gear receiving the parts from you. Additional delays may be incurred if product needs additional testing or repairing.
If you are an international customer, please email the warranty department at email@example.com to receive further instruction. International customers may have the option to field destroy an approved warranty to avoid costly return shipping. In this case, any shipping charges for replacement parts will be at the expense of the customer.
