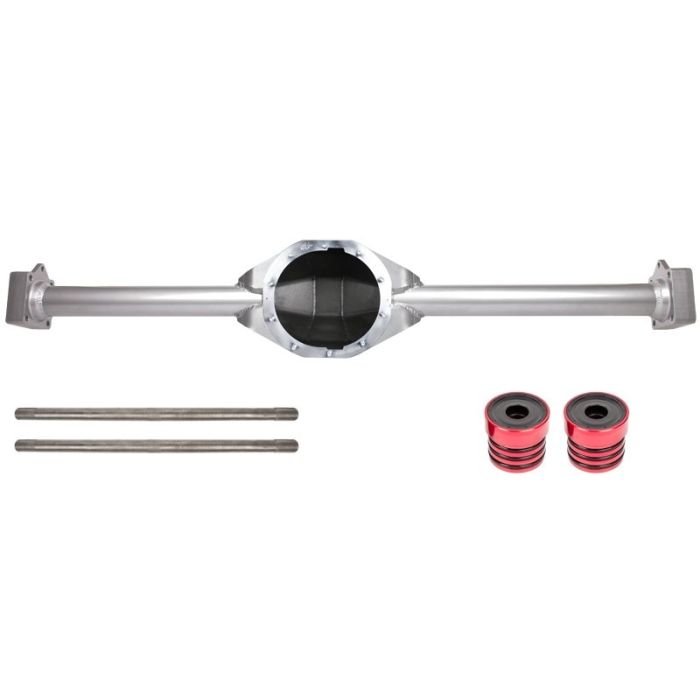

Rock Assault 9" Rear Axle Housing With Shafts
Rock Assault 9 Rear Axle Housing w/Shafts
The Rock Assault 9 is now available as a complete welded assembly from flange to flange including the Unit Bearing Pockets The new Rock Assault 9 is available in 3 great sizes to fit all applications. Designed for Wheel Mount Surfaces (WMS) of 60”, 65”, and 68”. We have made it easier for your axle upgrade or custom build. The assembly will also include the inner housing seals.
We started with a 1/4" formed shell for the center section made out of A572 Grade 50 Steel for increased strength. This is a high-strength, low alloy, structural steel plate with a minimum yield strength of 50,000 psi! All of this is attached to an equally strong 1/2" face plate for anchoring the DOM axle tubes. The axle tubes are secured by the industry's first 3-Point Attachment System, giving the tubes superior support and engagement into the center section. We also face the center section to ensure your differential mounts flush against the axle housing to prevent any leaks.
We also redesigned the Rock Assault 9 Axle Housing to allow for the use of both a 9" and 10" differential! This will give you the option to create an even stronger axle and give you that piece of mind knowing you have the strongest axle under your rig..
We are so confident our Rock Assault 9 is the strongest on the market that we are backing the product with our legendary No Questions Asked Warranty.
Also available in 3.5" O.D. axle tubing
**MADE IN THE USA**
NOTE: WMS (Wheel Mount Surface Dimensions) reached using TG Unit Hub, TG# 144012-K, and 1/4"Brake Hats. Using other components will vary final results. Pinion is offset 2.125 to allow for same sizeÂ axle shafts for passenger, and driver side.
Note: The differential bolt pattern on 9" Axle Housings are NOT universal. Please check before cutting or welding
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- 1/4" formed steel shell center section
- 1/2" face plate
- Axle tubes are secured by the industry's first 3-Point Attachment System™, giving the tubes superior support and engagement into the center section
- Fits both a 9" and 10" differential
- 35-Spline Axle Shaft made from heat-treated 4340 Chromoly
- Designed for Wheel Mount Surfaces (WMS) of 60”, 65” and 68”
- Non-vehicle specific
If you have any questions on the use or installation of this product please contact our customer support at (559)-549-6737
