2005+ Tacoma Suspension Kit without Shocks - Expedition Springs and Universal Bump Stops
Save time and money by purchasing our full all-pro suspension kit. Our All-Pro Suspension Kit w/o Shocks is intended for those who plan on using adjustable coil-overs and need to compliment them with a rear spring lift and adjustable control arms. Choose between Standard and Expedition leaf springs. Optional bumpstops are available.
Each kit comes with a pair of All-Pro tubular chromoly upper control arms, extended brakes lines, and a u-bolt flip kit.
All-Pro Upper Control Arms; 3500T-AP-A-ARM-1.25-PR:
- Tubular chromoly upper a-arms
- Uses 1.25″ uniballs (Made in the USA)
- New flush mount hardware and spacers
- Uniball spacers CNC machined from heat-treated stainless steel
- Polyurethane bushings with thick inner sleeves
- Includes grade 8 and high strength 12pt hardware
- Powder coated gray finish
-
Maximum wheel backspacing = 4.50″
All-Pro Leaf Pack (choose Standard or Expedition)
- A higher number of thinner leafs provides a smoother, progressive spring rate compared to fewer, thicker leaves
- Double “military” wrap provides extra strength for the main leaf
- “Torque Leaf”, an extra half-leaf at the top of the spring pack, increases anti-wrap properties without hindering travel or ride quality
- Diamond-cut leaf ends to eliminate stress points which may weaken leafs and lead to premature failure
- Teflon anti-friction pads between leafs provide smoother flex, lessen spring wear and reduce noise
- Leafs are shot-peened after forming to relieve stress
- Every completed spring pack is pre-cycled to their travel extremity for quality control and to reduce the likelihood of initial sag
- Comprehensive 12-month warranty for non-racing applications when properly installed **Using a lifting block or shackle flip with our springs will void the warranty on our springs
All-Pro Rear U-Bolt Flip Kit; 4400T-AP-05:
All-Pro Off-Road’s U-bolt flip kit turns the U-bolts upside down so the bolt ends face up, away from the rocks. This mod both prevents damage to U-bolt threads and increases ground clearance. Kit comes complete with new heavy duty u-bolts, hardened u-bolt nuts and washers. The All-Pro U-Bolt Flip kit comes with tapped plates in every kit.
All-Pro Rear Extended Brake Lines; 5500T-AP-R-05:
These steel braided brake lines are great for your lifted Toyota. Rear brake lines are 24″ and are designed for stock ride up to a 4″ lift. US DOT approved. Exceeds all requirements of the Department of Transportation Motor Vehicle Standard MVSS-106.

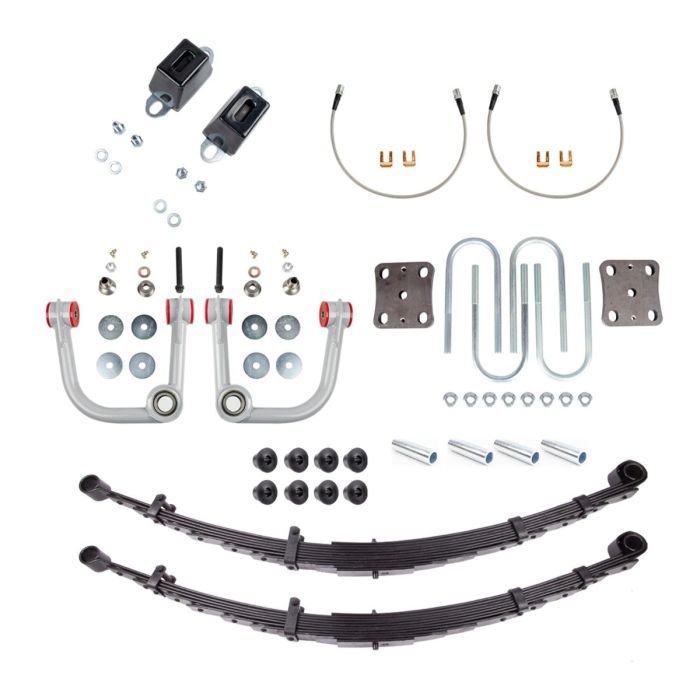

Kit includes:
- 1 pair All-Pro Upper Control A-Arms (3500T-AP-A-ARM-1.25-PR)
- 1 pair All-Pro Standard Leaf Pack (upgrade to Expedition in ‘Options’ for $50.00)
- 1 each All-Pro U-Bolt Flip Kit w/tapped plates for bump stops (4400T-AP-05)
- 1 pair steel braided rear brake lines (5500T-AP-R-05)
Lift:
- Suitable for 0-3″ adjustable front lift
- 2-1/2 to 3″ rear lift (standard springs)
- 3″to 4″ (expedition springs)
- 2005-2018 Toyota Tacoma
